The new revolutionary design with the most advanced six-axis servo control principle of combining force Mutai Ke introduction of foreign expertise in the country launched a new all-electric six degrees of freedom platform. The market will completely replace the existing hydraulic platform six degrees of freedom, avoiding the large pump stations, pipes, valves and other complex systems.

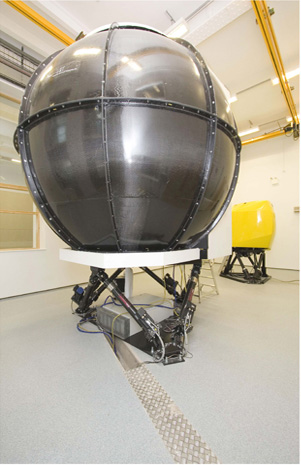

Dynamic simulation platform D6B series of six degrees of freedom payload ranges from 0.5 tons -20 tons, high-fidelity simulation of dynamic visual simulation platform with the high performance docking, can be widely used in a variety of training simulators, such as flight simulators, ship simulator, Navy helicopter landing simulation platform, tank simulators, driving simulators, train driving simulator, an earthquake simulator and dynamic film, entertainment and other fields.

Precision positioning platform W6B series of six degrees of freedom payload of 0.5 tons -50 tons, position control accuracy of 0.02mm, outside with laser collimator can achieve higher accuracy 0.01mm. Can be widely used in various automotive posture test equipment, aircraft / missiles, aircraft flight attitude test equipment and other sophisticated testing platform for multi-degree of freedom, as well as space spaceship docking, docking aerial refueling tanker aircraft machine assembly, satellite assembly .

Our professional technical team can follow a variety of special requirements of customers, providing different characteristic parameters 2/3/4/5/6/7 DOF platform. We provide you with complete system services: pre-sales technical consulting, design, sale and installation, full technical Q & A, 24-hour rapid response and other services.

Product Features:

To enhance the realism of the simulation and some high-performance dynamic prompt performance;

All-digital closed-loop servo control, professional motion control card ensure a smooth transition and high-simulation exercise, reducing dynamic drift and distortion.

The new portfolio and the freedom and flexibility of a modular system integration, to meet the different needs of customers

Optimal combination of high-precision drive system and ensure the system's high efficiency of 85%

Easy to install, simple to maintain multiple mechanical and electrical safety protection, to ensure the absolute safety equipment />

System response time and high-and low-noise high acceleration

Visibility friendly interface, simple operation

Built-in sensor detects motion abnormalities, the platform automatically returns to zero.

Uninterruptible power supply configuration to ensure the safety device off

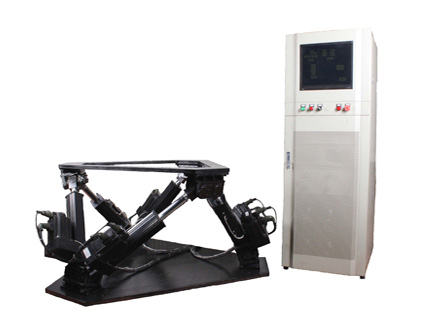

Six DOF motion simulator system components

Motion Platform Control System

Includes: Special double-door cabinet, industrial computer, motion control card, servo drives and wiring, touch screen and so on. Menu modular interface, you can clearly set some parameters, contains a number of electrical control and protection program, and maintain good communications with the host fast, built-in motion energy optimization distribution system, improve energy efficiency, reduce energy consumption.

Visual Simulation System

Three 42-inch monitor or projection screen and other visual loop system to achieve real visual effects. Matching hi-fi system, such as driving immersive.

Electric servo cylinder

6 servo motor sport platform provides six-cylinder sport, using the latest technology using an absolute encoder, cylinder limit position cushioning system, advanced servo control system makes six servo cylinder according to the set

Trajectory to achieve smooth motion, the key to ensuring high-fidelity effects. Built-in limit switch system to ensure ultimate safety. Matching brake servo motors ensure timely stops unexpectedly when. Can be installed parallel belt between the motor and the cylinder, special import high-strength belt, maintenance-free life; You can choose between the motor and the cylinder linear coupling installation, ensure higher dynamic response time.

Hook up and down the platform articulated

High precision machining Hooke articulated to ensure the system's location precision and smooth motion without gaps, finite element analysis and ensure Hooke hinge pin safety, low maintenance costs

Upper and lower work platform

Up and down the platform customized according to the specific, finite element analysis to ensure sufficient strength, the platform can increase the rotating platform, to 7 degrees of freedom
