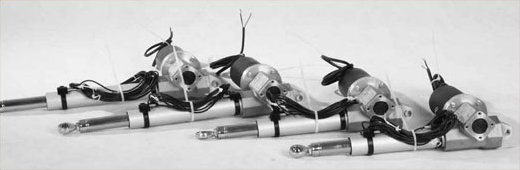

LAP Linear actuator

　　Made of the high intensity and high wear-endurance material, assembled with high precision components, together with advanced designing concept of the housing, our actuators are mainly characterized by the high load capacity, shock-resistance, low noise, long lifetime, hence they can work in the harsh environment normally. The actuators are categorized by the acme screw actuator (duty cycle 30%) and ball screw actuator (100% duty cycle) which is non-standard products please contact our office for details. actuator can be driven by the DC12/24/36/48V motor, 1 phase/3 phase AC motor, servo motor, explosive-proof motor, or the gear reducer.
　　function of self-locking can be fixed according to the self-locking co-efficient,multiple actuator can be driven synchronously, multiple positioning can be realized by equipping with encoders, many kinds of accessories, suitable for wide range of applications.

LAP系列电动推杆电子样本下载

LAP Series Electric putter parameter table - with DC motor

Type Speed mm/s Dynamic Load N Ratio Motor Power Poles Speed Rated Current A Self-locking
Coefficient		 Weight kg Extra Weight per 100mm stroke kg
LAP22 26-36 400 N2 DC24V 4.5 0.35 2 0.3
13-18 750 L2 4.2 0.27
10-13.5 950 N1 4.2 0.22
5-6.5 1400 L1 4.5 0.16
LAP25 32-40 1000 N2 DC24V 9.8 0.35 3.2 0.4
16-20 1600 L2 9.5 0.28
12-15 2000 N1 9.6 0.22
6-7.5 3000 L1 9.5 0.17

Performance Tables of LAP Series ---With AC 3-Phase Motor

Type Speed mm/s Dynamic Load N Ratio Motor Power Poles Speed Self-locking Coefficient Weight Kg Extra Weight per 100mm stroke kg
LAP22 30 500 N2 0.06kw 2800 380V 50HZ 0.35 2 0.3
15 750 L2 0.27
11 900 N1 0.22
5.5 1400 L1 0.16
LAP25 37 1000 N2 0.09kw 2800 380V 50HZ 0.35 3.2 0.4
18.5 1600 L2 0.28
14 2000 N1 0.22
7 3000 L1 0.17
LAP28 93 600 H2 0.12kw 2800 380V 50HZ 0.40 5.1 0.3
60 1000 V2 0.41
46 850 H2 0.09kw 1400 380V 50HZ 0.40
35 1100 H1 0.12kw 2800 380V 50HZ 0.25
30 1750 N2 0.35
22 1500 V1 0.25
15 3000 L2 0.27
11 3600 N1 0.22
7.5 4000 L2 0.09kw 1400 380V 50HZ 0.27
5.5 4000 L1 0.12kw 2800 380V 50HZ 0.16
2.8 4000 L1 0.09kw 1400 380V 50HZ 0.16
1.9 4000 XL1 0.11
LAP32 93 830 H2 0.18kw 2800 380V 50HZ 0.38 5.8 0.5
60 1250 V2 0.38
46 1300 H1 0.27
30 2200 N2 0.33
23 1650 H1 0.12kw 1400 380V 50HZ 0.27
15 3750 L2 0.18kw 2800 380V 50HZ 0.25
7.5 5550 L1 0.18
3.5 6000 L1 0.12kw 1400 380V 50HZ 0.18
1.9 6000 XL1 0.12
LAP35 93 1300 V2 0.25kw 2800 380V 50HZ 0.37 7.4 0.8
46 2100 V1 0.25
23 4300 N2 0.28
15 6000 L2 0.22
11 6300 N1 0.20
7.5 10000 L1 0.16
5.5 9000 N1 0.18kw 1400 380V 50HZ 0.20
4 10000 L1 0.16
LAP40 93 3000 V2 0.55kw 2800 380V 50HZ 0.37 12.9 0.9
46 4400 V1 0.26
23 10000 N2 0.25
18 12000 L2 0.24
11 12000 N1 0.18
9 12000 L2 0.37kw 1400 380V 50HZ 0.24
5.5 12000 N1 0.18
4.5 12000 L1 0.17
LAP56 93 11000 V2 2.2kw 2800 380V 50HZ 0.34 50 2
46 15000 V2 1.5kw 1400 380V 50HZ 0.34
30 20000 N2 2.2kw 2800 380V 50HZ 0.26
23 18000 V1 1.5kw 1400 380V 50HZ 0.24
15 25000 N2 0.26
11 25000 L2 0.75kw 1400 380V 50HZ 0.23 40
7.5 25000 N1 0.18
5.5 25000 L1 0.15
LAP63 89 15000 V2 3.0kW 2800 380V 50HZ

0.32

 70 3
44 30000 V2 3.0kW 1400 380V 50HZ 0.32
30 40000 N2 3.0kW 2800 380V 50HZ 0.2+
22 42000 V1 3.0kW 1400 380V 50HZ 0.21
15 50000 N2 2.2kW 1400 380V 50HZ 0.26
11 50000 L2 0.23
7.5 50000 N1 1.5kW 1400 380V 50HZ 0.18 60
5.5 50000 L1 0.15
LAP80 134 14000 V2 4KW 2800 380V 50HZ 0.34 100 40
67 28000 V2 4KW 1400 380V 50HZ 0.34
46 35000 N2 4KW 2800 380V 50HZ 0.24
33 40000 V1 4KW 1400 380V 50HZ 0.24
23 70000 N2 0.24
17 80000 L2 0.22
11 80000 N1 0.16
8.5 80000 L1 3KW 1400 380V 50HZ 0.15 90

Note: LAP Series Electric putter motor are equipped with single-phase AC motors, DC motors, stepper motors, servo motors, parameters are subject to change, please contact your local engineer.
LAP products Environment Operating Temperature: -15℃ - +14℃ (For -40℃ - +70℃, consult your local engineer)
