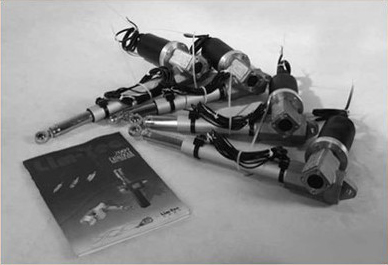

LBP Linear actuator

　　Made of the high intensity and high wear-endurance material, assembled with high precision components, together with advanced designing concept of the housing, our actuators are mainly characterized by the high load capacity, shock-resistance, low noise, long lifetime, hence they can work in the harsh environment normally. The actuators are categorized by the acme screw actuator (duty cycle 30%) and ball screw actuator (100% duty cycle) which is non-standard products please contact our office for details. actuator can be driven by the DC12/24/36/48V motor, 1 phase/3 phase AC motor, servo motor, explosive-proof motor, or the gear reducer.
　　function of self-locking can be fixed according to the self-locking co-efficient,multiple actuator can be driven synchronously, multiple positioning can be realized by equipping with encoders, many kinds of accessories, suitable for wide range of applications.

LAP系列电动推杆电子样本下载
Type Speed mm/s Dynamic Load N Ratio Motor Power Poles Speed Rated Current A Self-locking
Coefficient		 Weight kg Extra Weight per 100mm stroke kg
LBP22 12.5-16.5 900 N1 DC24V 4.2 0.49 2 0.3
6.5-8.5 1400 L1 4.5 0.36
LBP25 16-20 2000 N1 DC24V 9.6 0.49 3.2 0.4
8-10 2700 L1 9.5 0.37

Performance Tables of LBP Series ---With AC 3-Phase Motor

Type Speed mm/s Dynamic Load N Ratio Motor Power Poles Speed Self-locking Coefficient Weight Kg Extra Weight per 100mm stroke kg
LBP22　 15 900 N1 0.06kW 2800 380V 50HZ　 0.49 2　 0.3　
7.5 1400 L1 0.36
LBP25　 18.6 2000 N1 0.09kW 2800 380V 50HZ　 0.49 3.2　 0.3　
9.3 2700 L1 0.37
LBP32 58 1500 H1 0.18kW 2800 380V 50HZ 0.56 5.8 0.5
37 2200 V1 0.56
29 2400 H1 0.12kW 1400 380V 50HZ 0.56
18.5 3500 N1 0.18kW 2800 380V 50HZ 0.48
9.3 4400 N1 0.12kW 1400 380V 50HZ 0.48
4.6 4500 L1 0.37
LBP35 58 2600 V1 0.25kW 2800 380V 50HZ 0.56 7.4 0.8
29 3400 V1 0.18kW 1400 380V 50HZ 0.56
14.5 4500 N1 0.25kW 2800 380V 50HZ 0.43
9.7 5400 L1 0.34
7.2 5400 N1 0.18kW 1400 380V 50HZ 0.43
4.8 5500 L1 0.34
LBP40 56 4800 V1 0.55kW 2800 380V 50HZ 0.56 13 0.9
28 5800 V1 0.37kW 1400 380V 50HZ 0.56
14 7200 N1 0.55kW 2800 380V 50HZ 0.38
11 7600 L1 0.36
7 8000 N1 0.37kW 1400 380V 50HZ 0.38
5.5 8000 L1 0.36
LBP56 78 12500 V1 1.5kW 2800 380V 50HZ 0.56 50 2
39 15500 V1 1.5kW 1400 380V 50HZ 0.56
26 18000 N1 1.1kW 2800 380V 50HZ 0.43
18.5 20000 L1 0.37
13 22000 N1 0.75kW 1400 380V 50HZ 0.43
9.3 25000 L1 0.37 40
LBP80 115 24000 V1 4KW 2800 380V 50HZ 0.56 142 6.2
60 35000 V1 3KW 1400 380V 50HZ 0.56
44 44000 N1 2.2KW2800380V 50HZ 0.38
48 48000 L1 0.35
55 55000 N1 1.5KW1400380V 50HZ 0.38
60 60000 L1 2.2KW1400380V 50HZ 0.35

Type Dynamic load KN
LBP22 4.25
LBP25 4.25
LBP32 7.8
LBP35 11.3
LBP40 18.0
LBP56 33.9
LBP80 65
