LIM-TEC Stainless Steel Screw Jack

High strength, low noise, long life, small volume

Turn down for more +

LIM-TEC Screw Jack

LIM-TEC stainless steel screw jack is specially for anticorrosive special requirements of the papermaking, food, chemical and other industries ,LIM-TEC have the whole series of KV stainless steel screw jack, are adapted stainless steel material,SS316 , SS304, SS329 , contains all the metal parts (except for worm wheel nut) : box, worm, screw, gland, tail cover, etc., containing choice of stainless steel screw nut and so on, we provide the overall qualified stainless steel screw jack

Foot Mounting KVL

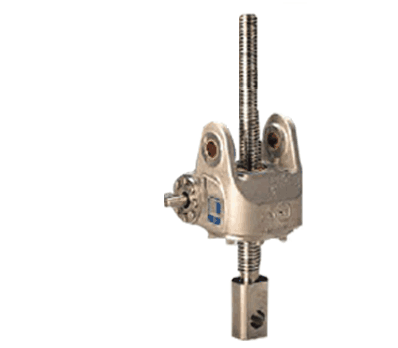

Clevis Mounting KVK

KVL(K) series screw jack parameters

Type		KV60	KV85	KV100	KV120
Rated load KN		50	100	150	200
Screw diameter x lead [mm]		Tr32×6	Tr52×8	Tr70×10	Tr80×8
Worm ratio	V1	1:7.25	1:12	1:18.5	1:19
Worm ratio	L1	1:20	1:24	1:56	1:38
Stroke for one input turn [mm]	V1	0.83	0.67	0.54	0.526
Stroke for one input turn [mm]	L1	0.3	0.33	0.18	0.263
Max input power [KW]	V1	1.3	2.5	3	4.5
Max input power [KW]	L1	1.0	2.0	2.5	3.5
Max starting torque at full load[Nm]	V1	36	70	100	130
Max starting torque at full load[Nm]	L1	18	50	48	90
Starting efficiency	V1	0.17	0.14	0.12	0.12
Starting efficiency	L1	0.12	0.10	0.08	0.09
Running efficiency at 100rpm	V1	0.25	0.21	0.18	0.18
Running efficiency at 100rpm	L1	0.18	0.16	0.13	0.13
Weight		AISI316
Weight[kg]	KVL	15	31	55	90
Weight[kg]	KVK	17	35	62	100
KVK		Drawing Download	Drawing Download	Drawing Download	Drawing Download

KVL footing mounting stainless steel screw jack

Type	KVL60	KVL85	KVL100	KVL120
A mm	140	200	230	294
B mm	112	150	180	244
C mm	156	220	250	322
D1(k6) mm	φ20	φ25	φ30	φ35
D2 mm	φ18	φ18	φ22	φ22
D3 mm	φ85	φ100	φ100	φ120
D4 mm	φ65	φ78	φ78	φ95
D5 mm	φ140	φ190	φ220	φ280
D6 mm	φ120	φ165	φ195	φ245
D7 mm	φ90	φ135	φ140	φ196
D8 mm	φ16	φ18	φ24	φ24
D9 mm	φ45	φ65	φ90	φ100
D10 mm	φ60	φ80	φ110	φ120
D11(H8) mm	φ28	φ48	φ65	φ70
E mm	40	50	68	61
F mm	32	40	50	55
G mm	60	85	100	120
H mm	235	301	340	416
J mm	70	98	113	145
K mm	86	118	135	170
L mm	111	135	165	214
M mm	23	30	35	43
N mm	20	25	30	38
O mm	207	271	305	376
P mm	57	70	85	109
Q mm	M6	M6	M6	M8
R mm	10	10	12	15
S mm	12	14.5	21	21
T mm	22.5	28	33	38
Tr mm	32×6	52×8	70×10	80×10
U mm	10	12	15	15
W mm	30	15	25	30
X1 mm	6	8	8	10
X2 mm	8	14	18	20
Y mm	31.3	51.8	69.4	74.9

KVK clevis-mounted stainless steel screw jack

Type	KVK60	KVK85	KVK100	KVK120
A(h12) mm	140	200	230	294
A1 mm	140	200	226	292
A2 mm	140	200	230	294
B(H13) mm	96	130	150	204
C mm	156	220	250	322
D1(k6) mm	φ20	φ25	φ30	φ35
D2(H8) mm	φ25	φ35	φ45	φ55
D3 mm	φ85	φ100	φ100	φ120
D4 mm	φ65	φ78	φ78	φ95
D5 mm	φ140	φ190	φ220	φ280
D6 mm	φ120	φ165	φ195	φ245
D7 mm	φ90	φ135	φ140	φ196
D8 mm	φ16	φ18	φ24	φ24
D9 mm	φ45	φ65	φ90	φ100
D10 mm	φ60	φ80	φ110	φ120
D11(H8) mm	φ28	φ48	φ65	φ70
E mm	40	50	68	61
F mm	32	40	50	55
G mm	60	85	100	120
H mm	175	233	265	330
J mm	70	98	115	142
K mm	209	245	295	367
L mm	111	137	165	214
M mm	107	120	145	179
N mm	63	67	75	80
P mm	57	72	85	109
Q mm	M6	M6	M6	M8
R mm	10	10	12	15
R1 mm	40	50	70	68
S mm	12	14.5	21	21
T mm	22.5	28	33	38
Tr mm	32×6	52×8	70×10	80×10
U mm	10	12	15	15
V mm	8	10	0	15
W mm	30	15	25	30
X1 mm	6	8	8	10
X2 mm	8	14	18	20
Y mm	31.3	51.8	69.4	74.9

Stainless steel screw jack

Types

KVL Foot Mounting

KVk Clevis Mounting
Size

60

85

100

200
Model

S Traveling screw

R Traveling nut
Ratio

V1

L1
Stroke

100
Front Attachment

NF Standard head

TS Ball joint

TF Rod end

FL Flange end
Input Version

P1 Single input shaft

P2 Double input shaft
Input Shaft

RH Right hand

LH Left hand
Accessories

SA Stainless steel Screw

AR Anti-turn device

WZ Stainless steel Trial cover

FCH The outer limit Switch box
