Double sealed to prevent dust and dirt out of the cylinder block,Protection grade
can achieve IP55 , IP56, can work and control position precisely for a long time
in the bad environment ,the control accuracy can reach 0.1 mm,
high rigidity, resistance to impact.
High precision movement, the steady movement, low noise, high speed
Turn down for more +

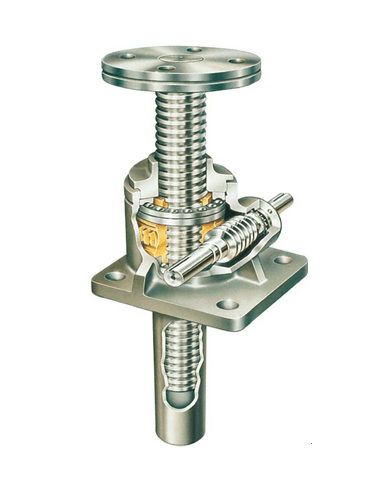

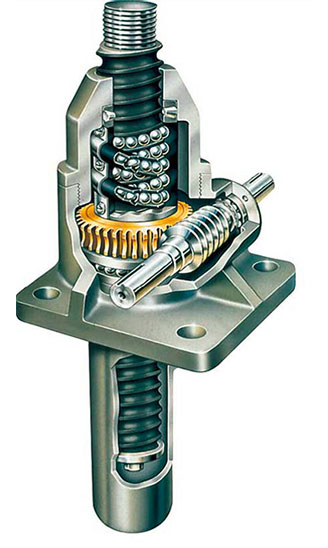

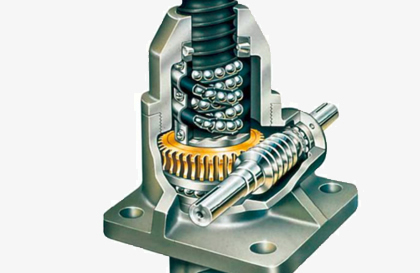

SLA Series Circular Shell Acme Screw Screw Jack
| Load (KN) | 5 | 10 | 25 | 50 | 100 | 150 | 200 | |
|---|---|---|---|---|---|---|---|---|
| Lifting screw | Diameter(mm) | 16 | 20 | 30 | 38 | 52 | 58 | 65 |
| Lead(mm) | 3 | 5 | 6 | 9 | 12 | 12 | 12 | |
| Type | Metric Acme thread | Metric Acme thread | Metric Acme thread | Metric Acme thread | Metric Acme thread | Metric Acme thread | Metric Acme thread | |
| Ratio | Standard | 5:1 | 5:1 | 6:1 | 6:1 | 8:1 | 8:1 | 8:1 |
| Option 1 | -- | 20:1 | 24:1 | 24:1 | 24:1 | 24:1 | 24:1 | |
| Option 2 | -- | -- | 12:1 | 12:1 | -- | -- | -- | |
| Screw stroke per Worm rotation revolution (mm) | Standard | 0.6 | 1.00 | 1.00 | 1.50 | 1.50 | 1.50 | 1.50 |
| Option 1 | -- | 0.25 | 0.25 | 0.38 | 0.50 | 0.50 | 0.50 | |
| Option 2 | -- | -- | 0.5 | 0.75 | -- | -- | -- | |
| Worm torque at no-load (N-m) | Standard | 0.23 | 0.56 | 0.56 | 1.13 | 2.26 | 2.26 | 3.39 |
| Option 1 | -- | 0.56 | 0.56 | 1.13 | 2.26 | 2.26 | 3.39 | |
| Option 2 | -- | -- | 0.56 | 1.13 | -- | -- | -- | |
| Max input power [kW] | Standard | 0.25 | 0.37 | 1.49 | 2.98 | 3.73 | 3.73 | 3.73 |
| Option 1 | -- | 0.19 | 0.37 | 0.56 | 1.12 | 1.12 | 1.12 | |
| Option 2 | -- | -- | 0.56 | 1.49 | -- | -- | -- | |
| Worm torque at full load [N-m] | Standard | 2.83 | 7.53 | 20.10 | 56.78 | 117.09 | 189.17 | 275.44 |
| Option 1 | -- | 3.69 | 9.34 | 27.06 | 63.17 | 101.40 | 147.70 | |
| Option 2 | -- | -- | 12.80 | 36.65 | -- | -- | -- | |
| Efficiency (%) | Standard | 16.9 | 21.1 | 19.8 | 21.0 | 20.4 | 18.9 | 17.3 |
| Option 1 | -- | 10.8 | 10.7 | 11.0 | 12.6 | 11.8 | 10.8 | |
| Option 2 | -- | -- | 15.5 | 16.3 | -- | -- | -- | |
| Weight at 25mm stroke (KG) | 1.04 | 2.27 | 7.71 | 15.88 | 23.59 | 29.94 | 42.18 | |
| Weight increased Per 25 mm stroke (kg) | 0.04 | 0.13 | 0.13 | 0.40 | 0.63 | 0.67 | 1.16 | |
| CAD Drawing Download |  Download |
