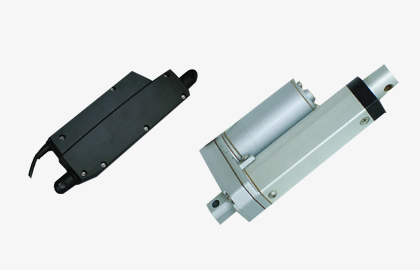

MINI LINEAR ACTUATOR
High strength plastic worm gear or powder metallurgy gear
Turn down for more+

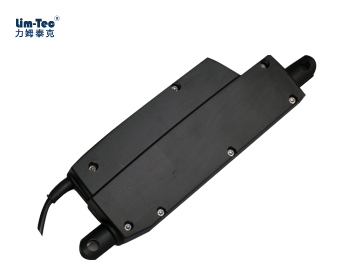

Lim-Tec MINI LINEAR ACTUATOR
Adopted aluminum alloy shell, telescopic pipe and other components, and parts of high strength plastic worm gear or powder metallurgy gear. Design specially application in medical treatment, office furniture, solar tracking and so no. light load, low noise high quality products.
Linear Actuator is driven by 12/24/36/48VDC motor
Working environment temperature 5 ℃ to 40 ℃ ，if need -40 ℃ to + 70 ℃, consulting local office.
Protection grade: IP54, IP55, (IP56, IP65, IP66), insulation class: F (H)
long-life grease, maintenance-free.
-
| 24/12V DC motor |
Maximum push load up to 600kg |
Speed 3-10mm/s |
Ultra-quiet design,steady speed |
| 10% duty cycle (10 minutes) |
Accessories: Potentiometer, hall sensor, over-heat protection. Maximum pull load up to 400kg |
Maximum stroke up to 500mm |
Built-in unadjustable limit switch |
| Protection class：IP52 |
Application:medical industry, office furniture
-
| 24/12V DC motor |
Speed 2-36mm/s |
High strength engineering plastic shell |
Built-in unadjustable limit switch |
| Protection class:IP51,IP65,IP66 |
Accessories: reed switch (with memory function) |
Maximum push load up to:300kg |
Maximum stroke up to 400mm |
| Ultra-quiet design,steady speed |
10% duty cycle (10 minutes) |
-
| 24/12V DC motor |
Speed 2-36mm/s |
High strength engineering plastic shell |
Ultra-quiet design, steady speed |
| Protection class:IP51,IP65,IP66 |
Accessories: reed switch (with memory function) |
Maximum push load up to300kg |
Maximum stroke up to 400mm |
| Ultra-quiet design,steady speed |
10% duty cycle (10 minutes) |
-
| 24/12V DC motor |
Maximum push load up to 75kg |
Speed 6-50mm/s |
High strength engineering plastic shell |
| Protection class:IP51,IP65,IP66 |
Accessories: Explosion-proof design, potentiometer, PLC control |
-
| 24/12V DC motor |
Maximum push load up to 40kg |
stroke from 50mm to 200mm |
10% duty cycle (10 minutes) |
| Speed 13-37mm/s |
High strength engineering plastic shell |
Protection class:IP51，IP65 |
-
| 24/12V DC motor |
Maximum push load up to:20000N |
Speed:2mm/s |
stroke :400mm 815mm 1000mm 1500mm (Special stroke )10%,S2 / 15min |
| Maximum static load up to:60000N |
High strength engineering plastic shell |
Protection class:IP65 |
-
| 24/12V DC motor |
Maximum rated load up to:10000N |
Speed:3mm/s |
stroke :457mm 609mm 914mm (Special stroke )20%,duty cycle Aluminum alloy shell |
| Maximum static load up to: 50000N |
Protection class:IP65 |
-
| 24/12V DC motor |
Maximum rated load up to:2500N |
With overload clutch and brake |
stroke :from 100mm-600mm |
| Protection class:IP66 |
Protection class:IP65 |
25% duty cycle (10 minutes) |
Temperature range:-40℃ - +85℃(DC),-26℃ - +65℃(AC) |
| Speed:11-33mm/s |
-
| 24/12V DC motor |
Maximum rated load up to:6000N |
Speed:11-65mm/s |
Maximum static load up to:13600N |
| stroke :from 100mm-600mm |
With overload clutch and brake 25% duty cycle (10 minutes) |
Maximum static load up to:4500N |
Protection class:IP66 ,IP65 |
| Temperature range:-40℃ - +85℃(DC),-26℃ - +65℃(AC) |
